Introduction to Integral pipe plate flange, advantages, characteristics and principles of tube sheet

Integral pipe plate flangeIt is an accessory widely used in various industrial equipment.，widely used insteam turbine,boiler,pressure vessel,tubular exchanger,pressure vessel and other industries，is carefully developed by Jianing forging combined with advanced technology。

1、Brief introduction of Integral pipe plate flange

Integral pipe plate flangeA hole slightly larger than the outer diameter of the pipe is drilled on the circular steel plate for fixing the pipe and the round steel fittings for sealing the medium. It is usually installed in a heat exchanger, and the pipe is penetrated and welded and fixed, thus playing the role of support and sealing. [Product Name] The machining accuracy, especially the distance between holes, the tolerance of pipe diameter, verticality and smoothness, has an important influence on the assembly and performance of chemical equipment.。

Integral pipe plate flange

2、On-site real shot of Integral pipe plate flange

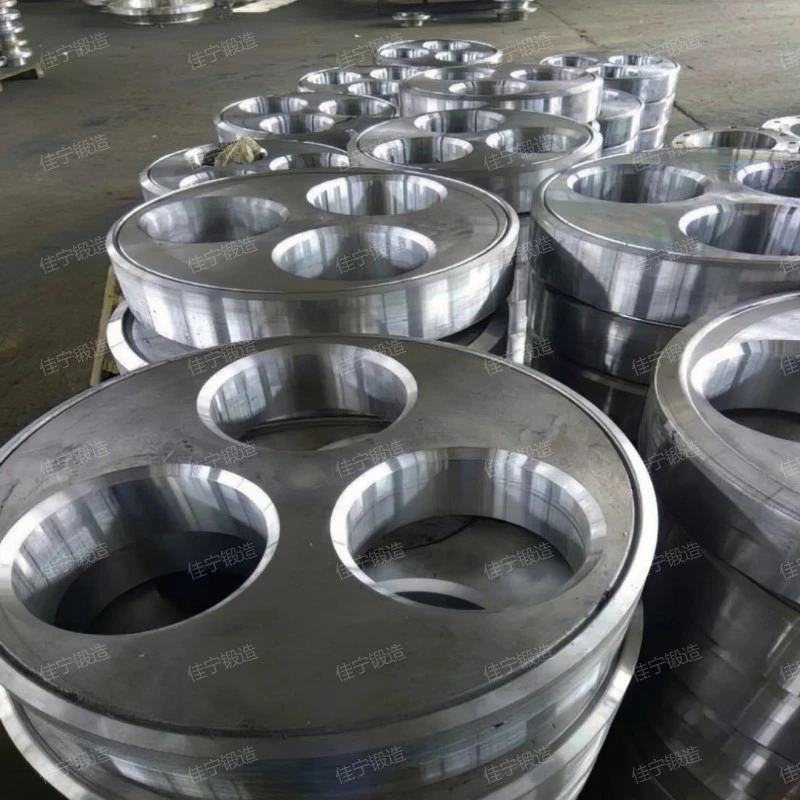

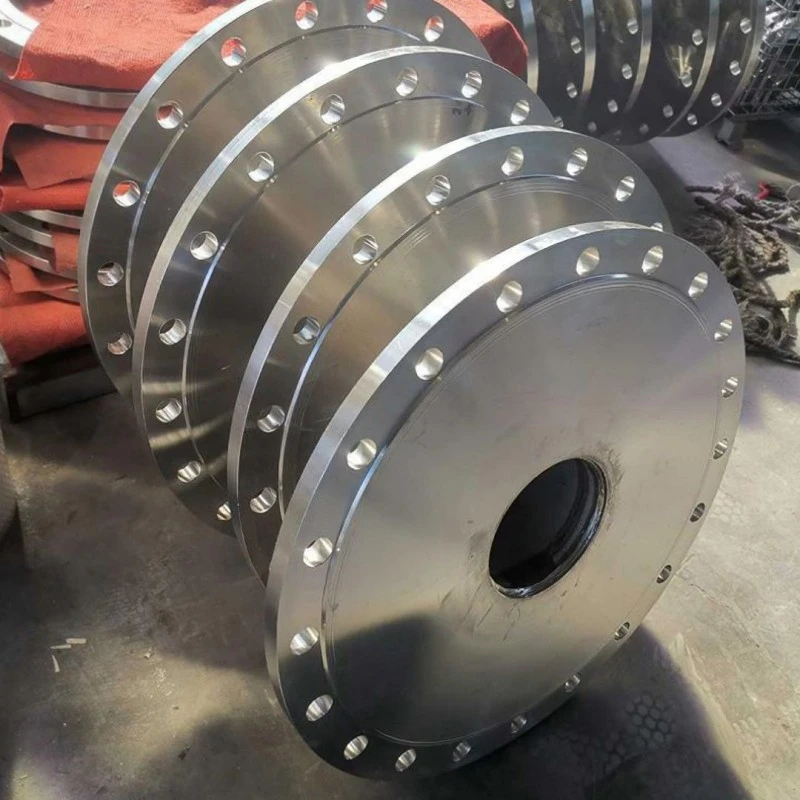

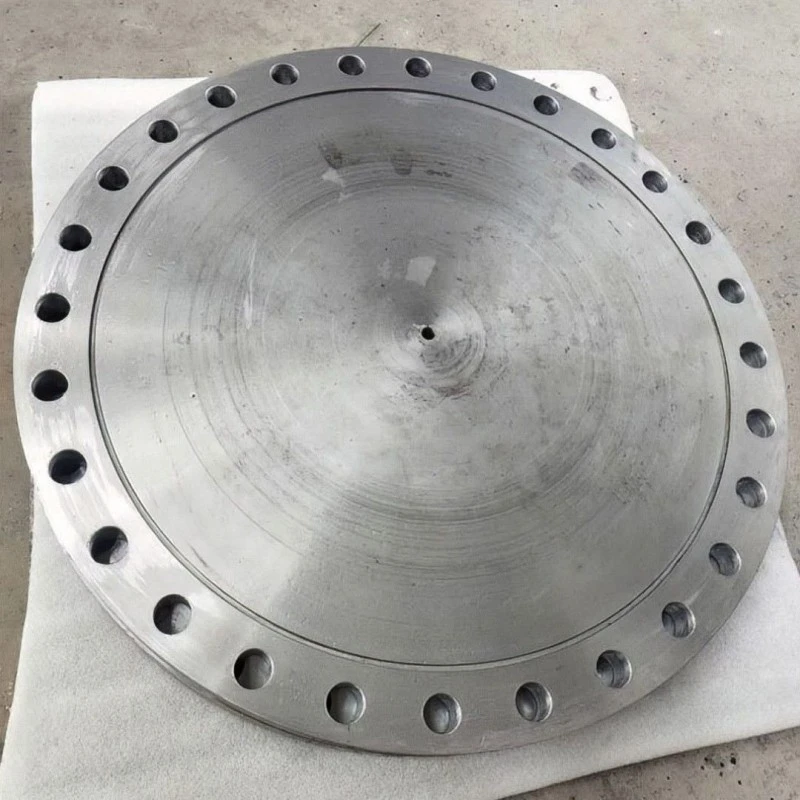

HD picture of Jianing Integral pipe plate flange,High machining accuracy。

Integral pipe plate flange

Note: All the pictures in this article were taken by Jianing forging manufacturer.。

3、Functional advantages of Integral pipe plate flange

The advantages of Integral pipe plate flange are as follows:

1. Adaptability and corrosion resistance

Integral pipe plate flanges can be made of different materials and thicknesses according to different use environments and requirements to meet different pressure, temperature and corrosion conditions. This enables the Integral pipe plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.

2. Improve heat transfer efficiency

In heat exchangers and other equipment, the contact surface between the Integral pipe plate flange and the tubes is the main channel for heat transfer. By optimizing the Integral pipe plate flange design and material selection, the efficiency of heat transfer can be improved, energy consumption can be reduced, and the whole equipment can be improved. performance

3. High heat conduction efficiency

The contact surface between the Integral pipe plate flange and the tube is the main channel for heat transfer. Through the design and optimization of the Integral pipe plate flange, the heat transfer efficiency of the heat exchanger can be improved and the energy consumption can be reduced. This is especially important for industrial processes that require efficient heat exchange.

4. corrosion resistance

According to the different use environment, the Integral pipe plate flange can be made of corrosion-resistant materials to cope with various harsh working conditions.

5. Convenient maintenance

The structural design of Integral pipe plate flanges usually takes into account the convenience of maintenance. For example, some Integral pipe plate flanges are connected by flanges, which is convenient for disassembly and maintenance.

Integral pipe plate flange

4、Integral pipe plate flange use

The purpose of Integral pipe plate flange is introduced as follows:

1. steam turbine

In the steam turbine, the Integral pipe plate flange may be used to support and fix some key components to ensure the normal operation of the steam turbine.

2. Large central air conditioner

The Integral pipe plate flange plays a role in supporting and fixing the refrigerant pipe in large central air conditioning, which is helpful to the circulation of refrigerant and heat exchange.

3. boiler

The Integral pipe plate flange also plays an important role in the boiler, which supports the fixed tubes and makes the boiler run stably and efficiently.

4. Condenser, evaporator, seawater desalination equipment

In these devices, Integral pipe plate flanges are also needed to support the fixed tubes to realize the processes of fluid condensation, evaporation and seawater desalination.

5. pressure vessel

In the pressure vessel, the Integral pipe plate flange is used to seal and fix the tubes to prevent medium leakage and ensure the safe operation of the vessel.

Integral pipe plate flange

5、Introduction of Integral pipe plate flange characteristics

Integral pipe plate flangefeatures include Strong rigidity, Good thermal conductivity, High strength and rigidity, Excellent thermal conductivity and corrosion-resistant，the advantage is Different materials and thicknesses can be selected according to different use environments and requirements to meet different pressure, temperature and corrosion conditions. This enables the Integral pipe plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.、Depending on the use environment, the Integral pipe plate flange can be made of different materials, such as stainless steel, titanium alloy and other corrosion-resistant materials. This enables the Integral pipe plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.、Through accurate processing and assembly, the fluid medium can be effectively sealed to prevent it from leaking to the external environment. This not only avoids resource waste and environmental pollution, but also ensures the safe operation of the equipment.、According to the different use environment, the Integral pipe plate flange can be made of corrosion-resistant materials to cope with various harsh working conditions.、The production adopts many advanced technologies, such as centrifugal casting and numerical control drilling machine, which improve the quality and performance of the Integral pipe plate flange.，is a common Integral pipe plate flange，it is widely used insteam turbine,boiler,tubular exchanger,Large central air conditioner,boiler and other industries，is based on Jianing is a Integral pipe plate flange newly developed by Jianing。
