Introduction to Aluminum alloy tube sheet, tube sheet specifications, model parameters

Aluminum alloy tube sheetIt is an accessory widely used in various industrial equipment.，it can be used in tubular exchanger, Large central air conditioner, tubular exchanger, boiler, pressure vessel and other industries，super quality and competitive price。The following is to introduce the Aluminum alloy tube sheet:

1、Brief introduction of Aluminum alloy tube sheet

Aluminum alloy tube sheetIt is a kind of fitting with specific holes drilled on circular steel plate, which are slightly larger than the outer diameter of the pipe to be penetrated.。

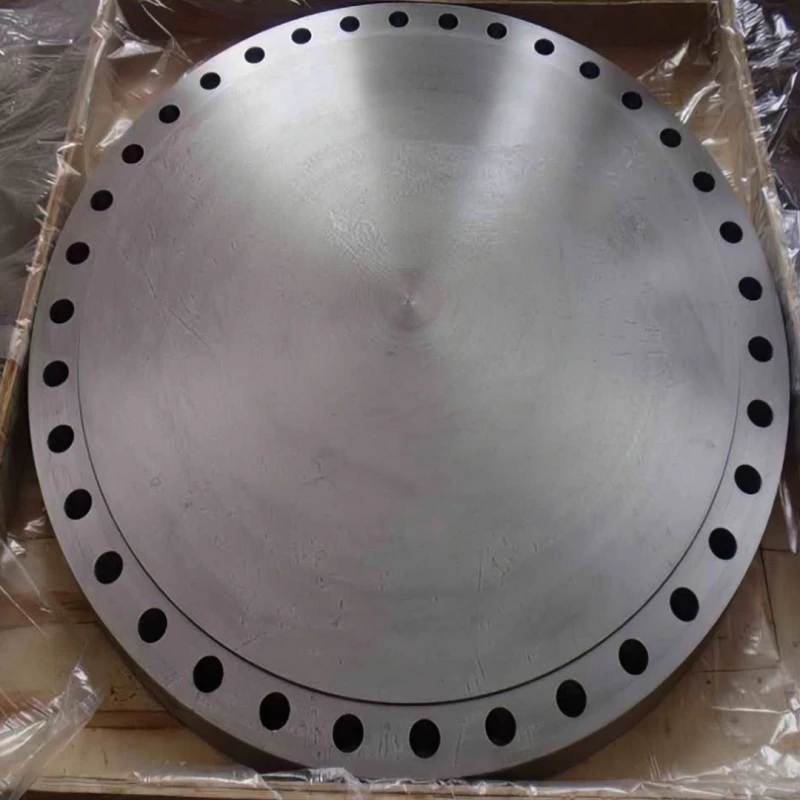

Aluminum alloy tube sheet

2、Aluminum alloy tube sheet performance advantage

Aluminum alloy tube sheets have the following advantages.

1. Improve heat transfer efficiency

In heat exchangers and other equipment, the contact surface between the Aluminum alloy tube sheet and the tubes is the main channel for heat transfer. By optimizing the Aluminum alloy tube sheet design and material selection, the efficiency of heat transfer can be improved, energy consumption can be reduced, and the whole equipment can be improved. performance

2. Excellent thermal conductivity

The metal material makes the Aluminum alloy tube sheet have good heat conduction performance, which is helpful for heat transfer in the heat exchanger.

3. High precision machining

With the application of numerical control technology, the machining accuracy of Aluminum alloy tube sheets has been significantly improved. High-precision machining ensures the close fit and efficient sealing between the Aluminum alloy tube sheet and the tube.

4. Sealing medium

Through accurate processing and assembly, the Aluminum alloy tube sheet can effectively seal the fluid medium and prevent it from leaking to the external environment. This not only avoids resource waste and environmental pollution, but also ensures the safe operation of the equipment.

5. Advanced technology

Modern Aluminum alloy tube sheet production adopts many advanced technologies, such as centrifugal casting, numerical control drilling machine and so on, which improve the quality and performance of the Aluminum alloy tube sheet.

Aluminum alloy tube sheet

3、Aluminum alloy tube sheet real beat

The design of Jianing Aluminum alloy tube sheet is exquisite and elegant. Here are the high-definition pictures of Jianing forging's factory products for our customers' reference. We need to make an appointment to visit the factory in advance for physical inspection.。

Aluminum alloy tube sheet

Note: All the pictures in this article were taken by Jianing manufacturer.。

4、Aluminum alloy tube sheet application

Aluminum alloy tube sheets have the following purposes.

1. Large central air conditioner

The Aluminum alloy tube sheet plays a role in supporting and fixing the refrigerant pipe in large central air conditioning, which is helpful to the circulation of refrigerant and heat exchange.

2. pressure vessel

In the pressure vessel, the Aluminum alloy tube sheet is used to seal and fix the tubes to prevent medium leakage and ensure the safe operation of the vessel.

3. steam turbine

In the steam turbine, the Aluminum alloy tube sheet may be used to support and fix some key components to ensure the normal operation of the steam turbine.

4. boiler

The Aluminum alloy tube sheet also plays an important role in the boiler, which supports the fixed tubes and makes the boiler run stably and efficiently.

5. Condenser, evaporator, seawater desalination equipment

In these devices, Aluminum alloy tube sheets are also needed to support the fixed tubes to realize the processes of fluid condensation, evaporation and seawater desalination.

Aluminum alloy tube sheet

5、Aluminum alloy tube sheet HD real shot

Jianing forging provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Aluminum alloy tube sheet

As you can see from the live video.，Jianing the main features are Strong rigidity, High strength and rigidity, Strong rigidity, High strength and rigidity and corrosion resistance。

Aluminum alloy tube sheetthe product looks atmospheric.，widely used in steam turbine, Large central air conditioner, tubular exchanger, pressure vessel, boiler and other fields，widely used insteam turbine,Large central air conditioner,tubular exchanger,boiler,pressure vessel and other industries。
