Aluminum alloy tube plate flangeA hole slightly larger than the outer diameter of the pipe is drilled on the circular steel plate for fixing the pipe and the round steel fittings for sealing the medium. It is usually installed in a heat exchanger, and the pipe is penetrated and welded and fixed, thus playing the role of support and sealing. [Product Name] The machining accuracy, especially the distance between holes, the tolerance of pipe diameter, verticality and smoothness, has an important influence on the assembly and performance of chemical equipment.。

1、Brief introduction of Aluminum alloy tube plate flange

Aluminum alloy tube plate flangeIt is an accessory widely used in various industrial equipment.，The contact surface with the tubes is the main channel for heat transfer. Through the design and optimization of the Aluminum alloy tube plate flange, the heat transfer efficiency of the heat exchanger can be improved and the energy consumption can be reduced. This is particularly important for industrial processes that require efficient heat exchange.、Through accurate processing and assembly, it forms a close fit with the pipe, thus effectively sealing the fluid medium. This sealing function prevents fluid from leaking to the outside of the equipment, ensures the normal operation and safety of the equipment, and also avoids resource waste and environmental pollution.、Structural design usually takes into account the convenience of maintenance. For example, some Aluminum alloy tube plate flanges are connected by flanges, which is convenient for disassembly and maintenance.、Convenient maintenance is usually considered in the structural design. For example, some Aluminum alloy tube plate flanges are connected by flanges, which is convenient for disassembling and replacing pipes, thus reducing the maintenance cost and difficulty.、The machining accuracy has been significantly improved. High-precision machining ensures the close fit and efficient sealing between the Aluminum alloy tube plate flange and the tube.，is developed and improved by Jianing forging。

Aluminum alloy tube plate flange

2、Introduction of Aluminum alloy tube plate flange characteristics

Aluminum alloy tube plate flangefeatures include High machining accuracy, Excellent thermal conductivity, corrosion-resistant, Good thermal conductivity and Strong rigidity，Widely used inImprove heat transfer efficiency,Sealing and leakage prevention,Support and fixation,Easy to maintain and repair.,Adaptability and corrosion resistance and so on，support customization。

Aluminum alloy tube plate flange

3、Aluminum alloy tube plate flange HD picture real shot

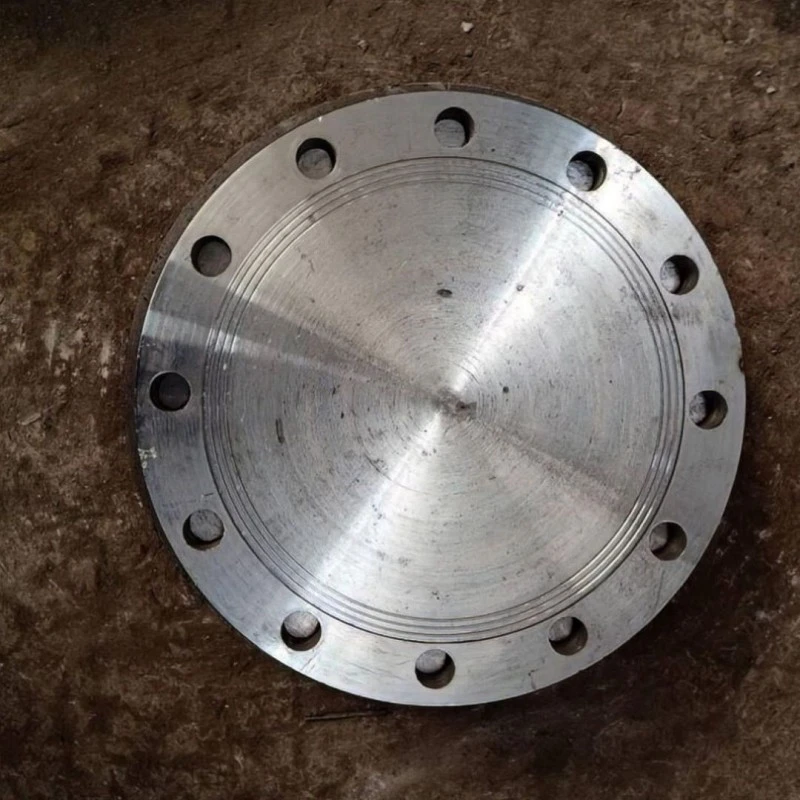

The Aluminum alloy tube plate flange is designed by Jianing forging with advanced technology, and the product has high performance advantages. In order to facilitate our customers to find a satisfactory tube sheet more quickly, the following high-definition pictures are provided for reference.。

Aluminum alloy tube plate flange

Note: All the pictures in this article were taken by Jianing manufacturer.。

4、Functional advantages of Aluminum alloy tube plate flange

Aluminum alloy tube plate flanges have the following advantages.

1. Strong corrosion resistance

Depending on the use environment, the Aluminum alloy tube plate flange can be made of different materials, such as stainless steel, titanium alloy and other corrosion-resistant materials. This enables the Aluminum alloy tube plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.

2. Customizable production

Aluminum alloy tube plate flanges can be customized according to actual working conditions and fluid characteristics to meet the needs of different customers. This flexibility makes Aluminum alloy tube plate flanges widely used in various industrial equipment.

3. Sealing and leakage prevention

Through precise machining and assembly, the Aluminum alloy tube plate flange forms a close fit with the pipe, thus effectively sealing the fluid medium. This sealing function prevents fluid from leaking to the outside of the equipment, ensures the normal operation and safety of the equipment, and also avoids resource waste and environmental pollution.

4. High heat conduction efficiency

The contact surface between the Aluminum alloy tube plate flange and the tube is the main channel for heat transfer. Through the design and optimization of the Aluminum alloy tube plate flange, the heat transfer efficiency of the heat exchanger can be improved and the energy consumption can be reduced. This is especially important for industrial processes that require efficient heat exchange.

5. corrosion resistance

According to the different use environment, the Aluminum alloy tube plate flange can be made of corrosion-resistant materials to cope with various harsh working conditions.
